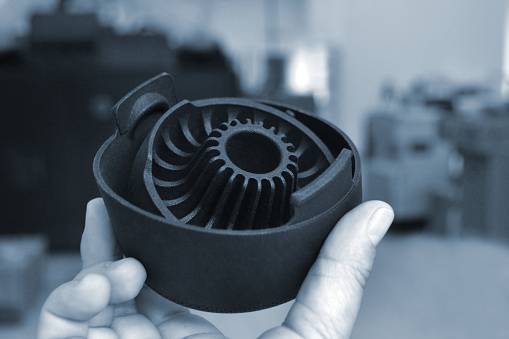

Mult jet fusion (MJF) is a 3d printing process developed by HP. This process is ideal for manufacturing end products, prototypes, design models and complex geometries in high and low numbers. The details are printed by applying an adhesive to a thin layer of plastic powder which is then sintered using a heating element. This results in gray or white details with isotropic material properties and a grainy surface structure that can be dyed into black, gray and various colors. The end result from MJF is very similar SLS Printing and both of these processes share the benefits of being able to cost-effectively scale up volume manufacturing. If the complexity of the details is low and volume manufacturing is not of interest, you should also investigate FDM Printing. With MJF tillverkas alltid detaljerna med 100% infill, alltså helt solida, och det är inte möjligt att justera det som i en FDM-printer. För tjocka geometrier behöver du modifiera modellen så att den får en väggtjocklek på 3 mm, är tom inuti och har ett eller flera hål för att tömma ut pulvret från tomrummet. Löst pulver avlägsnas efter bästa förmåga med hjälp av tryckluft och blästring men visst pulver kan finnas kvar speciellt i vissa trånga utrymmen.
Are you unsure which process suits your purpose best? Then click here!
| Process data | Value |
|---|---|
| Standard tolerance | ± 0.3% (minimum limit ±0.3 mm) |
| Layer thickness | 0.08 mm |
| Minimum wall thickness | 0.8 mm |
| Minimal detail | 0.8 mm |
| Largest component size | 380x380x280 mm (Nylon 12 standard) |
*the above data depends on the choice of material.
*click to enlarge*
Egenskaper
Färger
Egenskaper
Färger
Egenskaper
Färger
Egenskaper
Färger
PA12 Standard is what our customers order the most. It is suitable for most purposes when it comes to functional prototypes, design models and mass production. The material is dark grey, which when dyed in black or gray gives a nice appearance with desirable surface properties in the form of scratch resistance. Compared to white SLS-manufactured PA12 which is dyed black, scratches in MJF-manufactured PA12 become dark gray instead of white.

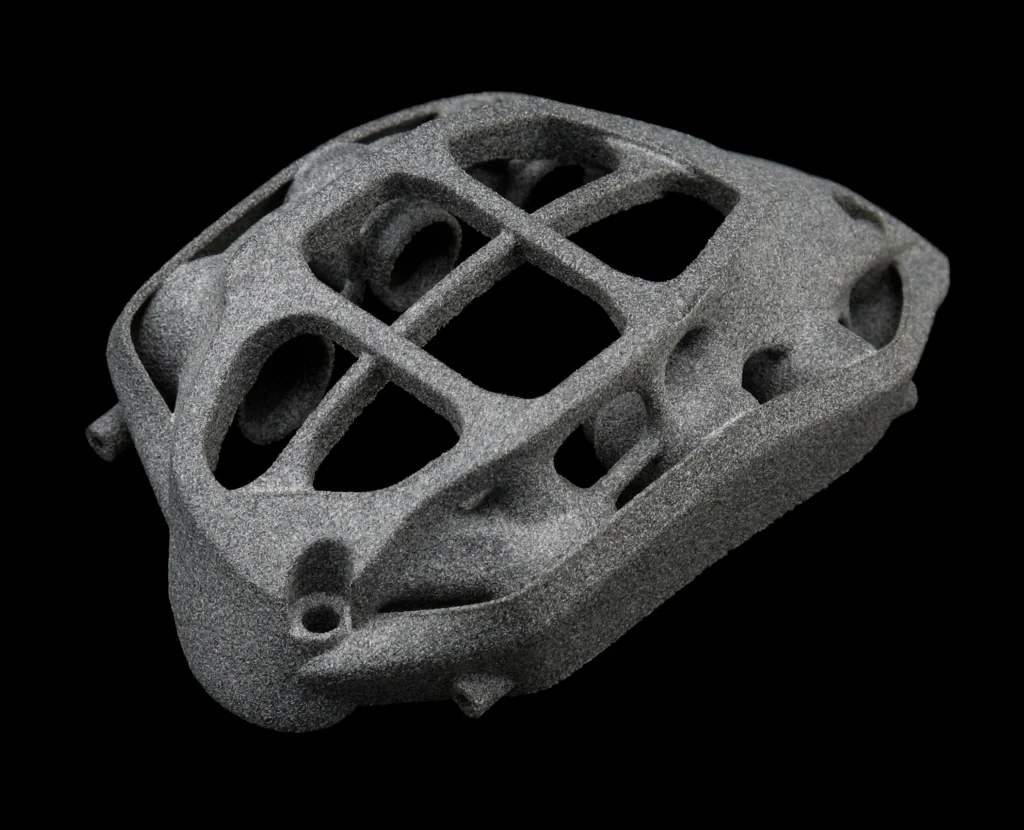

PA12 Standard untreated

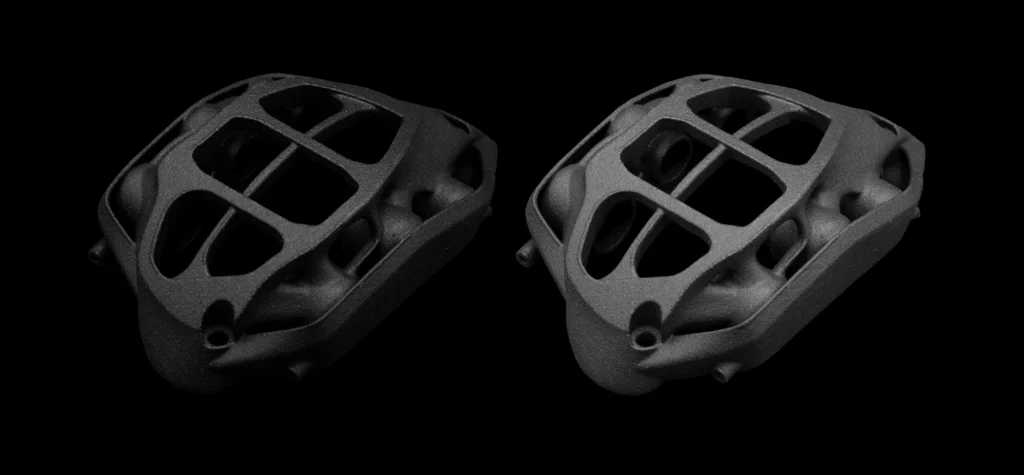

PA12 Standard incolored black and gray

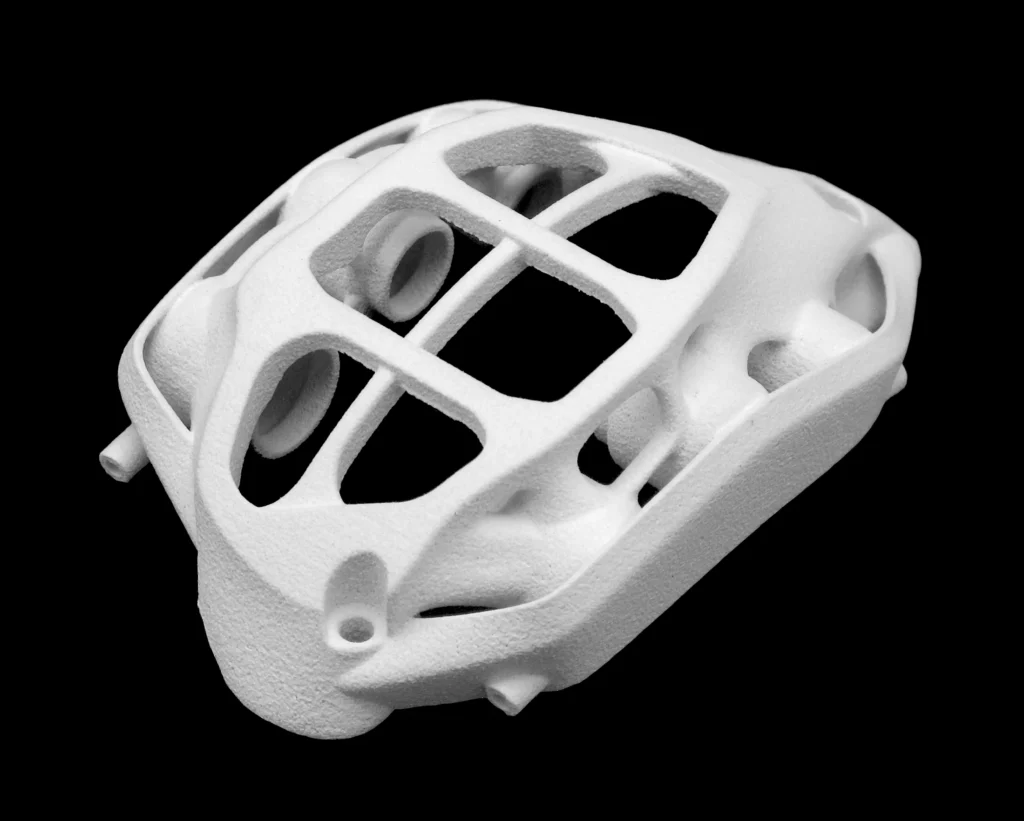

Liksom PA12 Standard är PA12 White lämpligt för de flesta ändamål när det kommer till funktionella prototyper, designmodeller och serietillverkning. Den enda skillnaden mot PA12 Standard är att PA12 White är vit vilket gör den är möjlig att färga in i olika färger. PA12 White är off-white och kan upplevas lite grå. Spana in PA12 för SLS för ett ännu vitare intryck.
PA12 Standard untreated

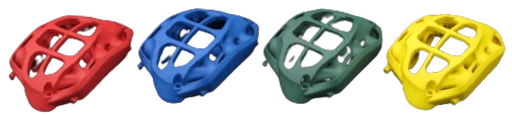

PA12 White dyed red, blue, green and yellow
Polypropen (PP), även känt som polypropen, är en av de mest använda polymererna globalt sett, hyllad för sin enastående prestanda, förvånansvärt lätta natur och förmåga att stå emot de mest aggressiva kemiska ämnena. Dess utbredning över olika branscher tjänar som ett bevis på dess mångsidighet och de exceptionella mekaniska och kemiska egenskaper som utmärker den. Denna polymer har etablerat sig som en grundläggande pelare inom en mängd olika industriella sektorer, tack vare sin enastående motståndskraft mot mekaniska belastningar och kemisk korrosion, vilket gör den till ett favoritmaterial för många applikationer.
PP obehandlad
PA12 Standard Economy: PA12 Standard is also available as PA12 Standard Economy, which is the same material as PA12 Standard, but the printer settings are slightly different, which results in faster and cheaper prints but with slightly lower strength. PA12 Standard Economy is very well suited for prototypes, design models and even series production and, like PA12 Sandard, can be colored in black or grey.

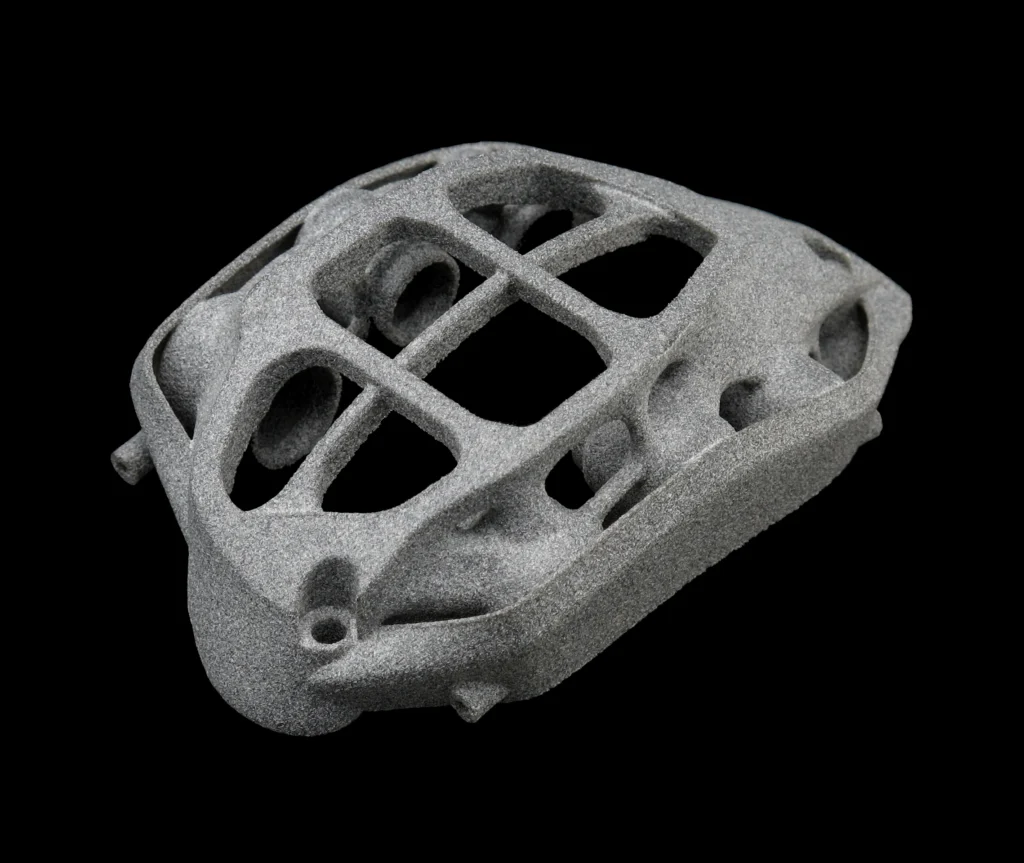

PA12 Standard Economy untreated
PA12 Standard Economy incolored black and gray
TPU 90A is a thermoplastic elastomer based on polyurethane and is a thermoplastic variant of polyurethane rubber. TPU 90A is very reminiscent of the softness and form strength of car tires. This material is perfect for prototypes of rubber parts or functional components where high demands are placed on abrasion resistance, wear resistance and elasticity.
TPU untreated

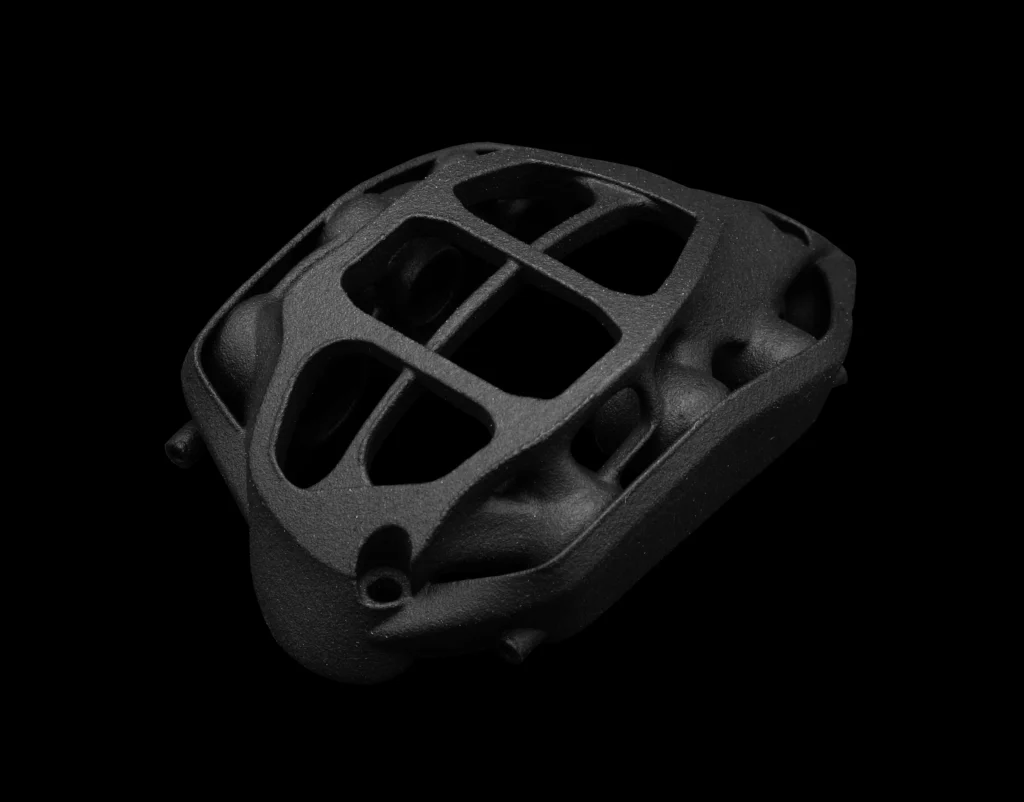

TPU colored black
PA11 is a bio-based that is generally better than PA12 with higher strength, impact resistance and ductility. PA11 is suitable for slightly more demanding applications in small-piece manufacturing, contract manufacturing and series manufacturing. The material is dark grey, which when dyed in black gives a nice look and a more durable surface. Compared to PA12, PA11 is a bit more expensive.
PA11 untreated
PA11 incolored black and gray
PA12-GB is glass-reinforced PA12 and is developed for applications that require higher stiffness than standard PA12 offers. PA12-GB is perfect for rigid fixtures, tools and enclosures. The material is dark gray which can be dyed into black or grey.

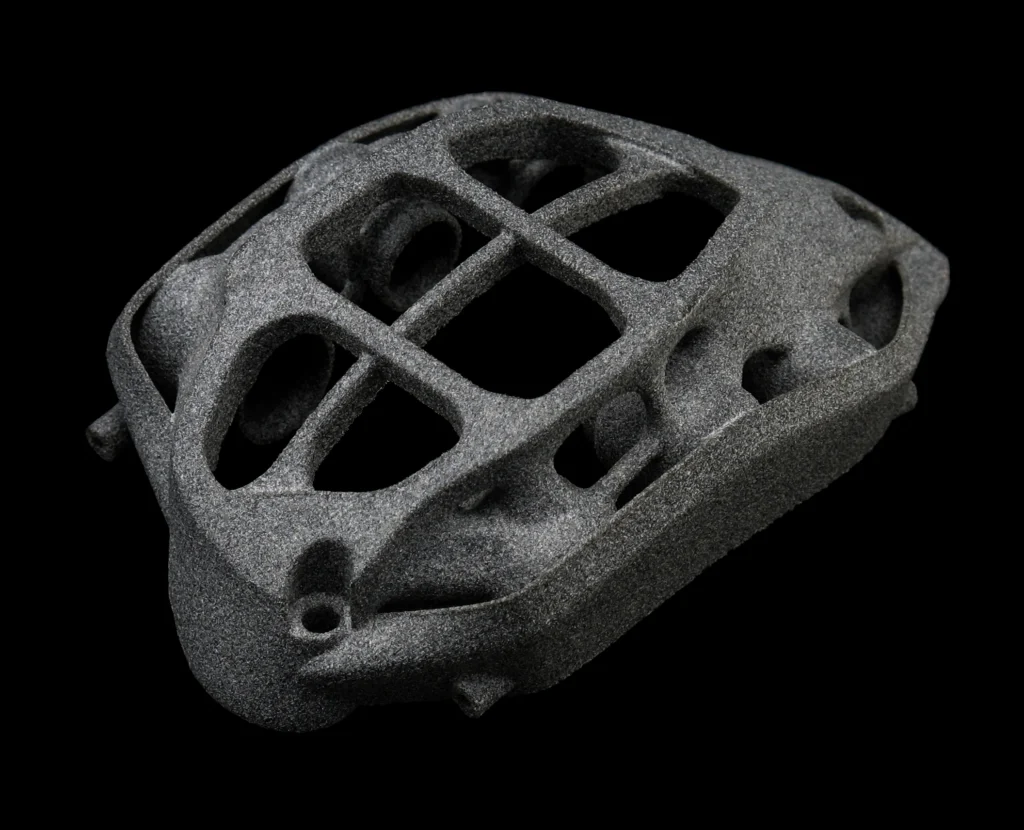

PA12-GB untreated
PA12-GB incolored black and gray
